Understanding the IEC 60502 Sizing System: A Double-Edged Sword

Exploring the IEC 60502 Cable Sizing Standard: A Comprehensive Guide with a Focus on EasyCableSizing's Innovative Approach

Ryan Smith
Ryan Smith ·

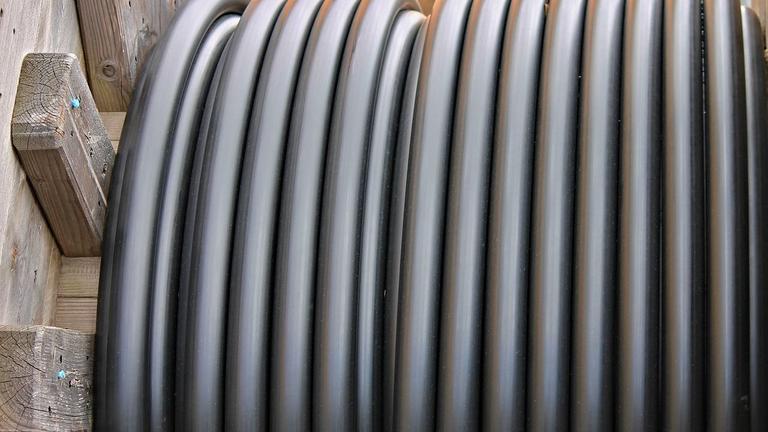

Single core 1kV cable to IEC 60502 specification
Single core 1kV cable to IEC 60502 specification

The International Electrotechnical Commission (IEC) 60502 standard serves as a backbone for many projects dealing with the design and installation of cables. It provides exhaustive guidelines on construction, dimensions, and testing of extruded insulation power cables up to 30kV. The standard is split into two parts, with part 1 addressing voltages up to 1kV, and part 2 extending from 1kV to 30kV. It includes a method for calculating current capacities, which is instrumental in determining initial cable size requirements for projects. However, like any standard, it comes with its own set of advantages and disadvantages.

§ Pros of Using IEC 60502 Sizing System

§ Standardization and Compliance

Adhering to the IEC 60502 sizing system ensures a high level of standardization. It aids in maintaining a uniform approach towards cable sizing across different projects, ensuring compliance with internationally recognized standards. This is crucial for gaining approvals from regulatory authorities and building trust with stakeholders.

§ Comprehensive Guidelines

The IEC 60502 standard provides comprehensive guidelines that cover a broad spectrum of aspects related to cable construction and testing. This is invaluable for engineers and designers as it offers a solid foundation to make informed decisions regarding cable sizing, significantly reducing the margin of error.

§ Facilitating Initial Project Planning

The method for calculating current capacities provided in the IEC 60502 is instrumental in initial project planning. It aids in establishing the initial cable size requirements, which is crucial for budgeting and resource allocation.

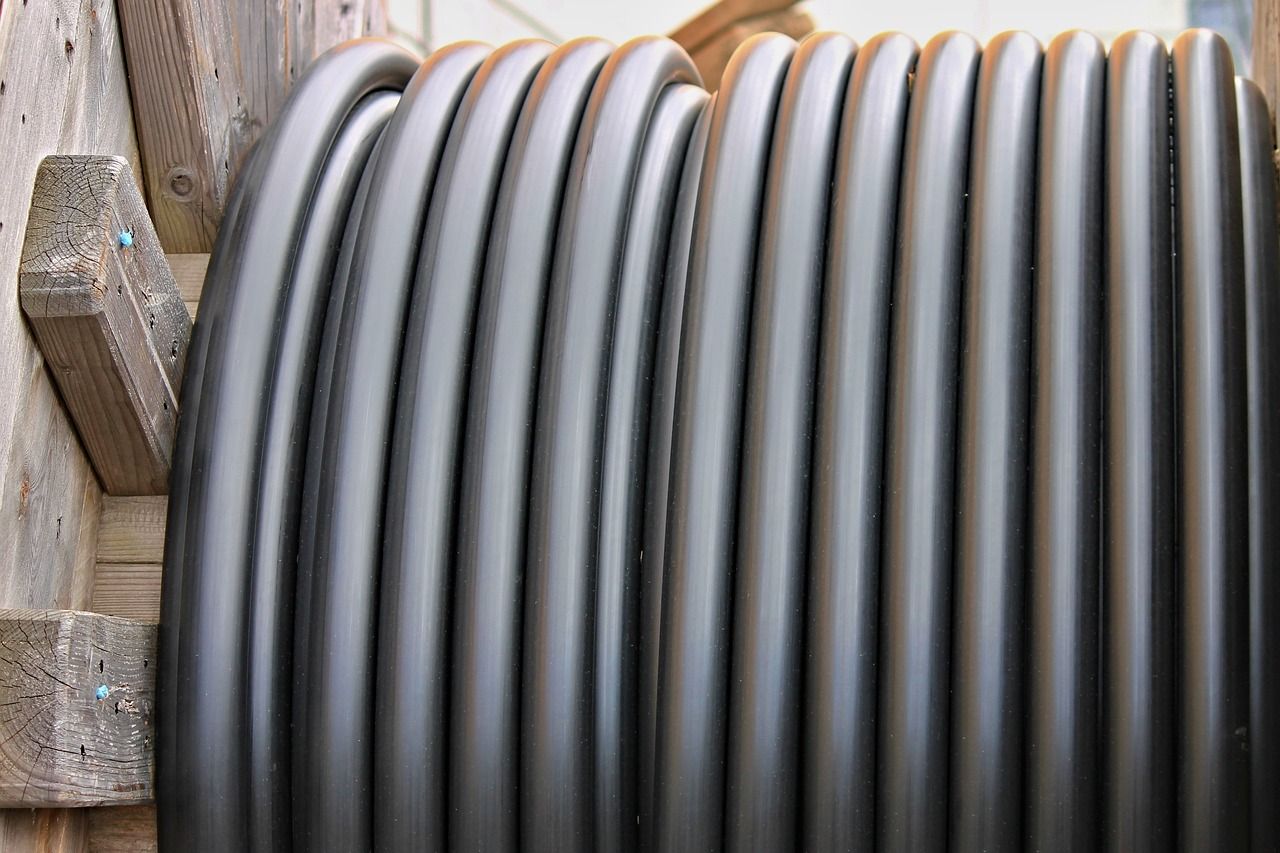

Single core 1kV cable to IEC 60502 specification
Single core 1kV cable to IEC 60502 specification

§ Cons of Using IEC 60502 Sizing System

§ Lack of Granularity

One of the major drawbacks of the IEC 60502 sizing system is the lack of granularity in its tables. The standards provide a set of discrete values, which may not cater to projects with unique or nuanced requirements. This lack of granularity can lead to over-sizing or under-sizing of cables, potentially escalating costs or risking system failure.

§ Rigidity

The rigid framework of the IEC 60502 standard can sometimes stifle innovative solutions. It may not cater to unconventional projects or those with unusual conditions, thus limiting the flexibility needed for custom solutions.

§ Requires Expert Interpretation

The IEC 60502 standard is complex and requires a deep understanding for accurate interpretation and implementation. This can pose a challenge for teams lacking in-house expertise in this domain. Moreover, understanding the standard’s implications in practical scenarios, such as voltage drop in electrical systems, is crucial. Explore our in-depth analysis on mitigating voltage drop in electrical cables to see how these considerations play a vital role in cable sizing and system efficiency.

§ Bridging the Gap: EasyCableSizing by Star Delta Software

While the IEC 60502 serves as a robust guideline for cable sizing, the emerging SaaS, EasyCableSizing, developed by Star Delta Software, aims to address the inherent limitations of this standard, providing a more refined approach to cable sizing.

§ Enhanced Granularity

EasyCableSizing enhances the granularity of the IEC 60502’s tables through linear interpolation, thus providing a more nuanced insight into cable sizing. This is crucial for projects requiring precise validation due to their critical nature or unusual conditions.

§ User-friendly Customization

Moreover, the robust cable library and the user-friendly tool for adding custom cables within EasyCableSizing, provide a platform for better addressing project-specific needs. This flexibility is a step ahead of the rigidity experienced with the traditional IEC 60502 sizing system.

§ Seamless Documentation and Communication

Additionally, the capability to export results as PDFs for seamless inclusion in user reports augments project documentation and stakeholder communication, making the decision-making process more transparent and data-driven.

In conclusion, while the IEC 60502 sizing system provides a solid foundation for cable sizing, the infusion of innovative solutions like EasyCableSizing is a game-changer. It not only addresses the limitations of the IEC 60502 standard but also adds a layer of flexibility, granularity, and ease of use, thus significantly enhancing the cable sizing and selection process for various project needs.
